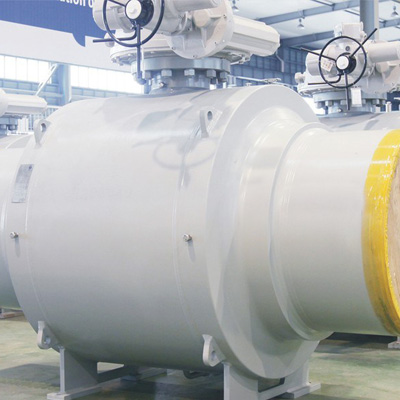

Untersee Kugelventil
Untersee rated for deep water applications.
- Size
- DN50-DN400 (2"-16")
- Pressure
- Class 150-2500 / PN16-PN420
- Temperature
- -29°C to +180°C
- Material
- WCB, LCC, CF8M, Super Duplex
- Connection
- RF, BW, Clamp
- Standard
- API 6D, API 17D
For an accurate proposal, include size, pressure class, material, end connection, medium, temperature, quantity and any project specification.
Product overview
Design intent and service scope
Konstruktioned for subsea applications with enhanced corrosion protection and specialized actuators for deep water installation.
Key design features
- Subsea rated
- ROV compatible
- Cathodic protection
- Deep water tested
Technical data
Product specifications
| Size | DN50-DN400 (2"-16") |
|---|---|
| Pressure | Class 150-2500 / PN16-PN420 |
| Temperature | -29°C to +180°C |
| Material | WCB, LCC, CF8M, Super Duplex |
| Connection | RF, BW, Clamp |
| Standard | API 6D, API 17D |
| Body | A216 WCB / A351 CF8M |
| Ball | A182 F316 / UNS S32760 |
| Stem | A182 F316 |
| Seat | PTFE, RPTFE |
| Actuator | Subsea Hydraulic, ROV Interface |
Service fit
Typical applications
Referenced standards and requirements
Standards shown here are product design references, not a claim that every size, material or configuration is covered by a certificate. Confirm the applicable edition and approval scope during quotation.
Available project documentation
Project-specific submissions can include a data sheet, general arrangement drawing, bill of materials, inspection and test plan, material certificates and test records when specified and agreed in the order.
