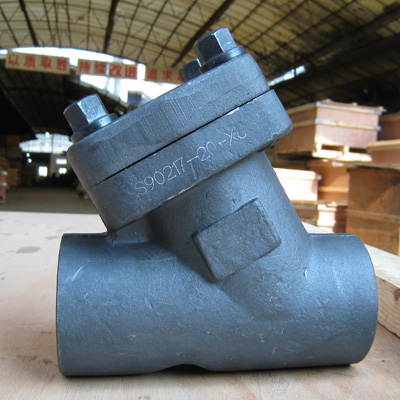

Clapet anti-retour à ressort
Compact toute position.
- Size
- DN8-DN100 (1/4"-4")
- Pressure
- Class 150-800 / PN16-PN100
- Temperature
- -29°C to +200°C
- Material
- WCB, CF8M, Brass
- Connection
- Threaded, NPT, BW
- Standard
- API 602
For an accurate proposal, include size, pressure class, material, end connection, medium, temperature, quantity and any project specification.
Product overview
Design intent and service scope
Clapet anti-retour à ressort compact toute position.
Key design features
- Spring-loaded
- Compact
- Any orientation
- Low cost
Technical data
Product specifications
| Size | DN8-DN100 (1/4"-4") |
|---|---|
| Pressure | Class 150-800 / PN16-PN100 |
| Temperature | -29°C to +200°C |
| Material | WCB, CF8M, Brass |
| Connection | Threaded, NPT, BW |
| Standard | API 602 |
| Body | A216 WCB / A351 CF8M / Brass |
| Disc | A182 F316 / PTFE |
| Spring | SS316 / Inconel |
| Seat | A182 F316 / PTFE / NBR |
| Actuator | None (Self-operating) |
Service fit
Typical applications
WaterAirOilGas
Referenced standards and requirements
ISO 9001CE
Standards shown here are product design references, not a claim that every size, material or configuration is covered by a certificate. Confirm the applicable edition and approval scope during quotation.
Available project documentation
Project-specific submissions can include a data sheet, general arrangement drawing, bill of materials, inspection and test plan, material certificates and test records when specified and agreed in the order.
