صمامات التحكم

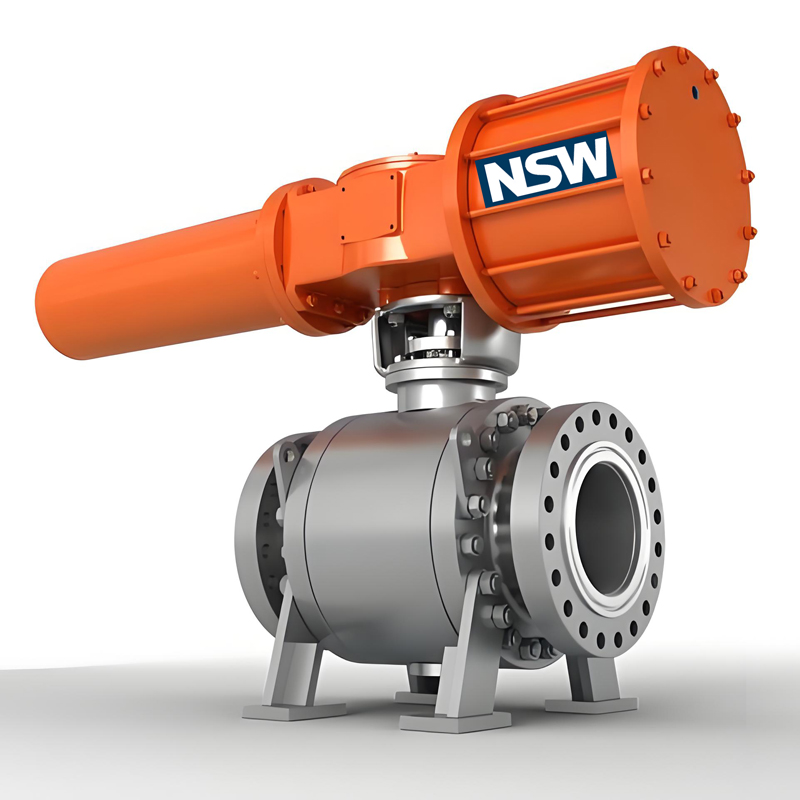

V-Notch Ball صمام تحكم
V-notch design for precise throttling.
- Size
- DN25-DN300 (1"-12")
- Pressure
- Class 150-600 / PN16-PN100
- Temperature
- -40°C to +200°C
- Material
- WCB, CF8M, PVC, PVDF
- Connection
- RF, Threaded, Wafer
- Standard
- IEC 60534
For an accurate proposal, include size, pressure class, material, end connection, medium, temperature, quantity and any project specification.
Product overview
Design intent and service scope
V-notch ball control valve for throttling applications. Equal percentage flow characteristic.
Key design features
- Equal percentage flow
- V-notch design
- Low noise
- Cavitation resistance
Technical data
Product specifications
| Size | DN25-DN300 (1"-12") |
|---|---|
| Pressure | Class 150-600 / PN16-PN100 |
| Temperature | -40°C to +200°C |
| Material | WCB, CF8M, PVC, PVDF |
| Connection | RF, Threaded, Wafer |
| Standard | IEC 60534 |
| Body | A216 WCB / A351 CF8M / PVC / PVDF |
| Ball | A182 F316 / PVC / PVDF |
| Stem | A182 F316 |
| Seat | PTFE, RPTFE |
| Actuator | Pneumatic, Electric |
Service fit
Typical applications
Referenced standards and requirements
Standards shown here are product design references, not a claim that every size, material or configuration is covered by a certificate. Confirm the applicable edition and approval scope during quotation.
Available project documentation
Project-specific submissions can include a data sheet, general arrangement drawing, bill of materials, inspection and test plan, material certificates and test records when specified and agreed in the order.
Review OEM/ODM and quality controls →
Need a project-specific configuration?
